IP and Mobility

  • Extend of mobility
    • Intra-cell mobility:
      • PHY layer
    • Inter-cell but Intra-network mobility: (micro mobility)
      • local routing / switching
      • No change of IP
    • Inter-network mobility: (macro mobility)
      • change of IP
      • handled by special mobility signaling protocols

Mobile IP (MIP)

  • TCP/IP: developed for non-mobile, single-homed host
  • Dual role of IP address: location, identity
  • no secure
    \(\Rightarrow\) Mobility: mobile IP
    \(\Rightarrow\) Security: IPSec

  • Mobility

    • IP: determines physical subnet
    • routing tables not scalable
    • IP changes \(\Rightarrow\) breaks transport layer connections

  • Requirement

    • Transparency: mobile device keeps IP
    • compatibility: No change in existing routing / devices
    • Security: authenticated
    • Efficiency and scalability

Concepts: \(\text{basic ID + location ID}\)

  • components

    • Mobile Node(MN)
    • Home Agent (HA)
      • home network router
      • manages MN
      • tunnels IP packets to this location (COA)
    • Foreign Agent (FA)
      • foreign network router
      • forwarding tunneled IP packet to MN
      • provides COA
    • Care-of Address (COA)
      • valid address of MN
        • managed by FA
        • assigned by MN (co-located COA) (via DHCP)
    • Correspondent Node (CN)

  • CN\(\rightarrow\) MN

    • CN\(\rightarrow\) HA \(\xrightarrow[to\ COA]{\text{encapsulation}}\) FA \(\rightarrow\) MN

  • MN\(\rightarrow\) CN


    • MN \(\rightarrow\) FA \(\rightarrow\) CN

  • Network Integration

    • Agent Advertisement: HA, FA periodically announce their existence

    • Registration: MN \(\xrightarrow[\text{via FA}]{\text{COA}}\) HA
      (protected by anthentication)

    • Local Advertisement: HA \(\xrightarrow[\text{as its own addr.}]{\text{IP addr. of MN}}\) access router

      • packet to MN: sent to HA
      • independent of changes in COA
      • HA \(\xrightarrow[]{\text{packet}}\) COA

      \(\Rightarrow\) simpler interaction

  • Encapsulation:

    • \((\text{2}^{\text{nd}} \text{ payload}(\text{1}^{\text{st}} \text{ packet}))\)
    • IP-in-IP-encapsulation
      • tunnel between HA and COA
    • minimal encapsulation
      • avoid repetition of identical fields
      • only for unfragmented packets
    • most flexible encapsulation

  • Optimization of Data Path

    • Problem: Triangular Routing


      • CN \(\xrightarrow[]{\text{all packets}}\) HA \(\rightarrow\) MN
      • especially: MN \(\leftrightarrow\) MN

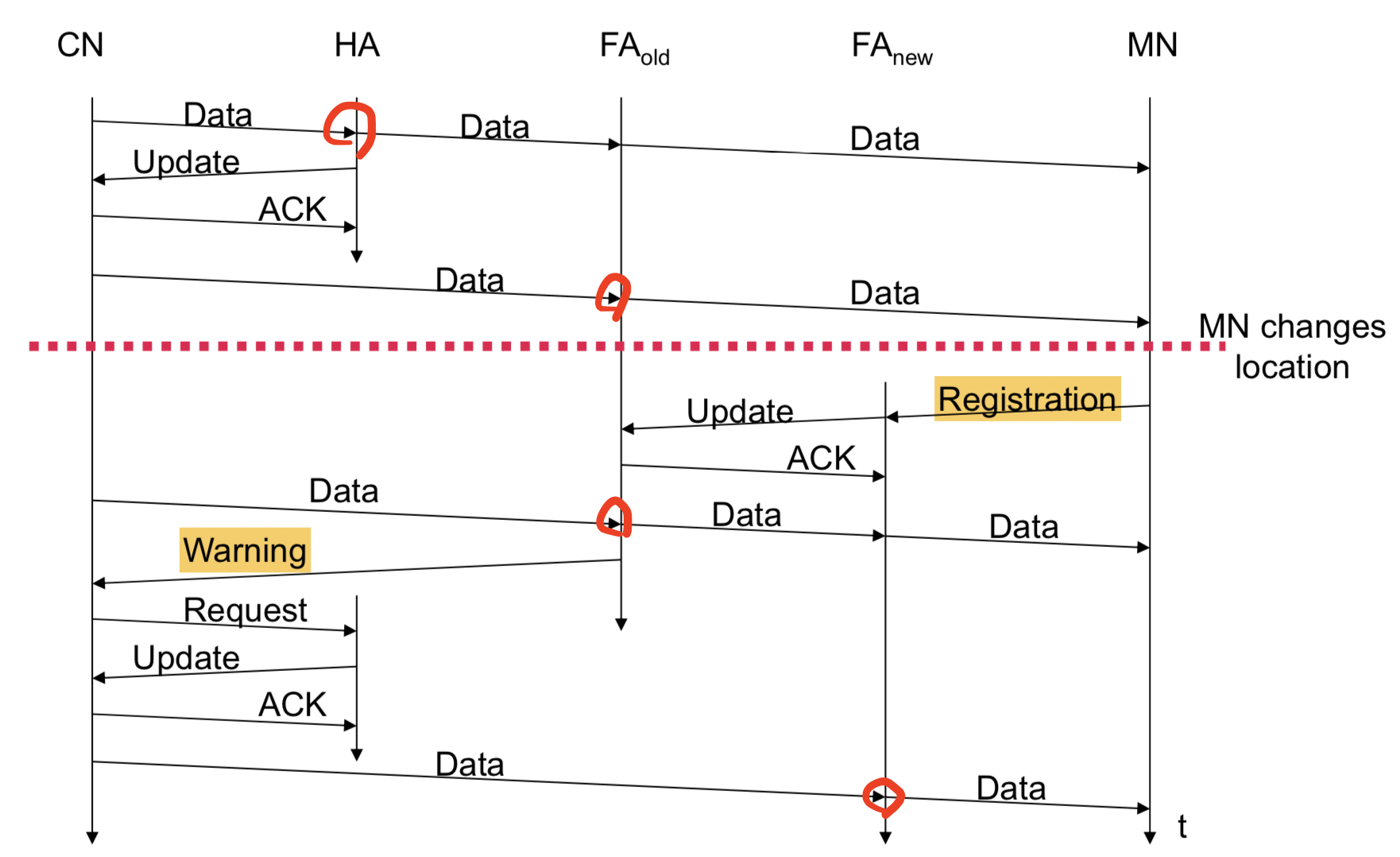

    • Solution: Change of FA


      • CN learns (from HA) current location of MN (route optimization)
      • (MN registers to new FA new COA)
        New FA informs old FA about new COA
      • old FA: forwards packets, can delete the MN’s registration information

  • Further problem

    1. firewall
      • often enforce topologically correct addresses
    2. multicast
      • MN cannot answer
    3. TTL
      • TTL varies from different locations
    4. security
      • CN can learn address ofFA
      • CN can track MN
    • Solution: Reverse Tunneling

      MN\(\rightarrow\) FA \(\require{extpfeil}\Newextarrow{\xRightarrow}{5,5}{0x21D2}\xRightarrow[]{\text{encapsulation}}\) HA \(\rightarrow\) CN
      • Solves Problems 1.2.3.
      • new problems:
        • double triangular routing
        • Security: FA intrudes home network

  • Mobile IP and IPv6

    • IPv6 can simplify mobility support
    • Security
    • Automatic path optimization:
      • IPv6 extension headers
    • “Soft” handover
      • without packet loss

  • IPv6 extension header

    • Routing
    • Destination

  • Route optimization is mandatory in MIPv6

    • CN, MN: binding update

MIP is designed to deal with user mobility
but security, performance

Host Identity Protocol (HIP)

  • MIP v.s. HIP

    • MIP:
      • support for un-modified CN
      • insfrastructure support (FA,HA)
      • indirect mobility management
      • Triangular routing
    • HIP:
      • end-to-en association
      • HIP-aware end-host
      • direct mobility management
      • Authentication, end-to-end security
      • no infrastructure support needed

  • HIP:


    • Signaling and key exchange protocol
      \(\text{control channel + payload channel}\)
    • namespace: cryptographic \(\Rightarrow\) mobility, multi-homing

  • Identifier / locator split

    • Problem: tight coupling between network / transport layers

    \(\Rightarrow\) separation of location (IPv4, IPv6) and identity (HIP)

    • applications see stable identity
    • routing: locator


      • IP can change
      • HI (Host Identity) is static
      • Network changes hidden from TCP layer

  • Cryptographic namespace

    • Host authentication
    • Self-generate private / public key pair
      • HI: public key

  • Globally unique / locally unique Identifiers

    • Host Identity Tag (HIT)
      • \(\text{HIT = hash (HI)}\)
      • IPv6
    • Local Scope Identity (LSI)
      • \(\text{LSI = Last digits (HIT)}\)
      • IPv4
      • Restricted to local scope

IPSec: Internet Protocol Security

  • [IT-security-1] IPSec

  • Encryption

    • Encapsulated Security Payload (ESP)
    • Authentication Header (AH)

  • mode

    • Transport mode
    • Tunnel mode

  • replay protection: sequence number

  • No key exchange protocol

  • IPSec transport mode with ESP

    • end-to-end
    • create secure tunnel between two hosts
    • ESP header:
      • Security Parameter Index (SPI): required for multiplexing
      • sequence number

  • IPSec tunnel mode with ESP

    • gateways
    • possible to combine with HIP
    • Inner header: communicating end-hosts
      Outer header: tunnel end-points

  • IPSec Bound End-to-end Tunnel (BEET) mode with ESP

    • IPSec mode + HIP
    • Syntactics (表面上): transport mode
      Semantics (意義上): tunnel mode
    • address translation defined by HIP
      • Inner IP: HIP host ID
      • Outer IP: routable IP address

  • Mobility \(\leftrightarrow\) Security

    • authentication
    • re-authentication
    • DoS

    \(\rightarrow\) careful protocol design

  • HIP handshake


  • Information in HIP message

    • Host Identity
    • Sig
    • Diffie-Hellman
    • HMAC
    • IPSec info
    • Puzzle: cryptographic puzzle parameter

Update

  1. Obtain new IP address
  2. Transmit new address to peers
  3. Peer verifies routability
  4. Peers adjust IPSec tunnel
  5. Payload uses adjusted tunnel

IPSec rekeying, mobility, multi-homing

  • Locator: generalization of a network address

  • Credit-based authentication

    • Mobility \(\rightarrow\) redirection-based flooding attacks

    \(\Rightarrow\) Credit-based authentication (CBA)

    • Idea: limit data rate
      • credit = number of bytes received from IP address of the peer
      • only send packet if credit suffices
      • credit aging decreases

Multi-homing

  • extension of mobility

  • host connected through two or more interfaces

  • multi-homing \(\xrightarrow[]{corresponds}\) mobility signaling

    • inform peers locator parameter
    • peer runs reachability check
    • Multi-homed host can also send locator during BEX

  • Infrastructure:

    • Original: Direct
    • middleboxes: indirect
      • NAT: compensation for lack of IPv4 addresses
      • Firewall: security
      • QoS and Proxy: performance

  • Legacy Middleboxes and HIP

    • Strong (theoretical) advantage of HIP architecture

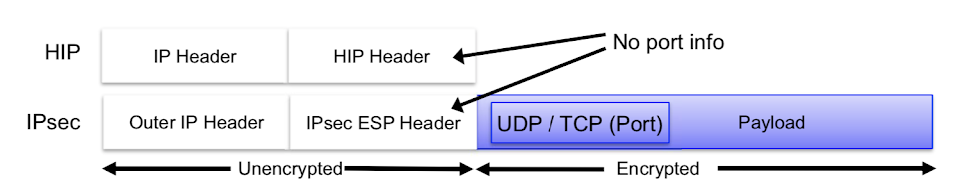

    \(\Rightarrow\) But middleboxes can affect HIP packet delivery

    • support only limited set of protocols

    \(\Rightarrow\) need to create support for legacy middlebox traversal

  • HIP strategy for legacy middlebox traversal

    • UDP encapsulation for HIP and payload
      • UDP understood by majority of middleboxes

    \(\Rightarrow\) but header overhead, more complex solutions needed

PISA

  • WiFi drawback
    • Threats to mobile node:
      • AP MITM attacks, eavesdropping
    • Threats to AP:
      • illegal mobile node
      • Access AP’s LAN
    • No roaming between APs
  • WiFi: trust relations
    • Transitive trust relation
      • Mobile guest
      • Community Operator
      • Host AP

      Home AP not included

  • PISA: Peer-to-peer-based Wi-Fi Internet Sharing Architecture


    • Securely relocate internet access \(\rightarrow\) MN’s home
      \[\text{AP provider}\require{extpfeil}\Newextarrow{\xLeftrightarrow} {5,5}{0x21D4}\xLeftrightarrow[]{\text{encrypted tunnel}}\text{mobile guest}\]
      • security, privacy
      • transparent mobility support
      • Solve legal liability (法律責任) problem
      • Scalable, decentralized solution
    • Global mobility and security by
      • HIP
      • Indirection via “Trusted host”
      • Encrypted tunnel

    • PISA: trust relations
      • \(\text{community}\require{mhchem}\ce{<=>[\text{attest membership (certificate)}][\text{trust}]}\text{Host AP}\)
      • \(\text{Host AP}\require{extpfeil}\Newextarrow{\xLeftrightarrow} {5,5}{0x21D4}\xLeftrightarrow[\text{trust}]{\text{transitive}}\text{Home AP}\)
      • \(\text{Home AP}\require{extpfeil}\Newextarrow{\xLeftrightarrow} {5,5}{0x21D4}\xLeftrightarrow[\text{trust}]{\text{strong}}\text{Mobile guest}\)
      • \(\text{Host AP}\dashrightarrow\text{Mobile guest}\)
        No trust necessary between Host AP and Mobile guest \(\Rightarrow\) data encryption



      • Security concepts in PISA


  • Authentication of Trust Point
    • \(\text{Initiator}\require{extpfeil}\Newextarrow{\xLeftrightarrow} {5,5}{0x21D4}\xLeftrightarrow[\text{Authentication}]{\text{Mutual}}\text{Responder}\)
    • PISA extends HIP handshake
      • no seperate handshake protocol
      • fewer packet, low latency, less complexity

  • Mobility with PISA
    • PISA extends HIP mobility
      • Authentication towards TP
      • Host AP can inject nonce and puzzle to enforce Home AP to proof its identification
  • Roaming \(\Rightarrow\) Delay
    • AP discovery
    • DHCP
    • authentication
    • mobility signaling
  • Parallel scanning \(\Rightarrow\) detecting APs on adjacent channels
  • Neighbor detection and coordination
    • Handover optimization
    • Load balancing
    • Channel assignments
  • Pre-authentication / Pre-configuration
    • Neighbor APs
    • Enable TP and AP to assist handovers
  • MOBIKE
    • Mobility and Multihoming extension for IKEv2
      • VPN: remotely connect to home network, protected by IPSec in tunnel mode
      • Problem: change of access network \(\Rightarrow\) change of IPSec SAs
      • Solution: MOBIKE
